RealSpace ISS Detail Set


By Vince Hoffmann - images & text © 2004

Scale: 1/144
Parts: 45 pieces resin cast, 1 piece photo etch
Instructions: Single 2-sided page, hand draw illustrations, poor painting guide.
Decals: N/A
Molding Quality: 8 - Clean and smooth, though small bubbles in some areas. Seam lines are difficult to find, no flash. Pour lugs will require a saw.
Detail: 9 - Very clean, slightly soft in some areas.
Accuracy: 10 - I found no discrepancies with my reference photos.
MSRP: $40.00 USD (~$52.74 CAN/ 32.25 EUR ) available from RealSpace Models
Overall Rating: An easy kit to assemble, but will require at least intermediate level modeling skills to merge it with either the IMRCO or Revell kit.

[Box]

[Click to enlarge]

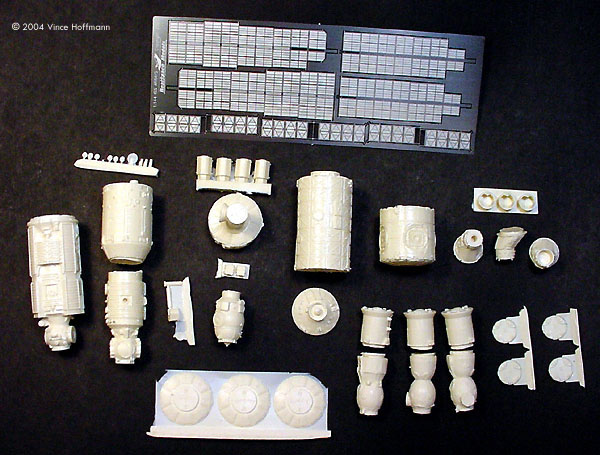

^ What you get

[]

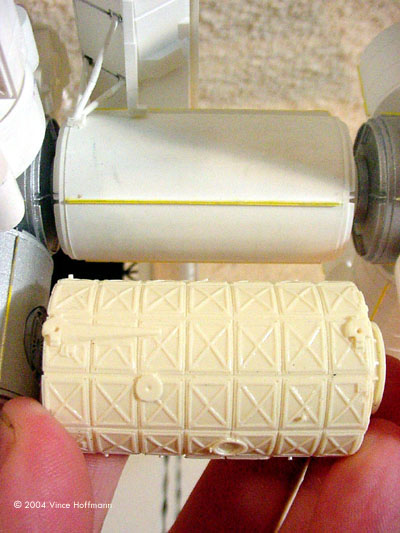

^Comparing the IMR and RealSpace Destiny modules

Image: Russian modules

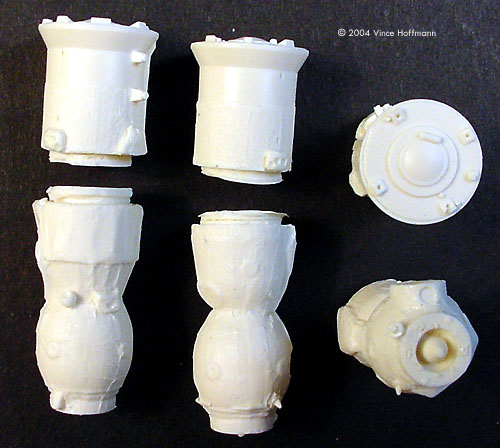

Image: Soyuz and Progress vehicles

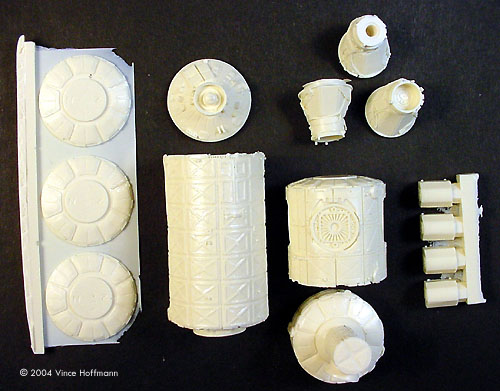

Image: US modules

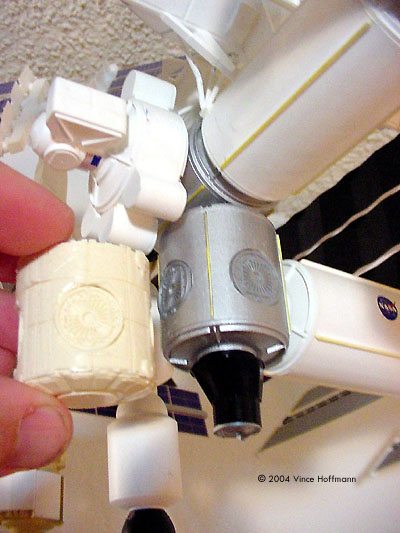

Image: Comparing the IMR and RealSpace Unity modules

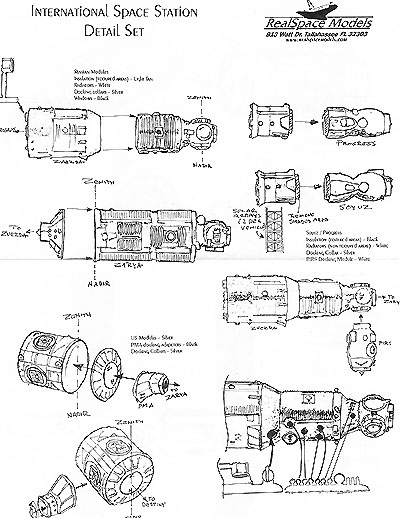

Image: Instructions

The newest addition to the fine collection of kits currently available from RealSpace Models is a long-awaited set of correctly detailed modules for the International Space Station kit. Although this kit is made for the Intermountain Railway ISS kit, the parts can also be used for the Revell kit.

The Kit

This detail set includes all the pressurized modules presently on orbit with the ISS. Each one is accurately textured and replaces the corresponding modules from the InterMountain ISS kit. Two Soyuz and one Progress are also included. The kit also includes a double-sided photo etched sheet for replacement Russian solar arrays for the modules and the spacecraft.

The parts came packaged in a bubble-wrap baggie, and unloading the parts from the bag revealed a multitude of very beautiful castings. I found very finely cast parts with few defects and excellent detail quality. Small bubbles are found in some areas will be easily repairable with putty, and seam lines are fine enough to remove with a sanding stick. Most of the parts are cast whole with one end left separate and small pour lugs which can be removed with either a hobby knife or razor saw. Upon close inspection of the US module parts, very small pinholes can be seen along the edges, and at first glance they would appear to be air bubble voids, but are actually cable connections and handhold attachment points used by the astronauts.

All of the parts appear to be attached to one another by gluing the exposed surfaces together. This method alone will not be enough to support the weight of the entire assembly once completed. I recommend that each major assembly should be pinned together with short brass or aluminum rods to help bear the weight and prevent joints from breaking.

Attention to Detail

I am very impressed with the quality of work on these parts, and in particular the parts breakdown. Each module is cast separately so the modeler can select and build the kit in a specific chosen level of construction. Each module is correctly textured, depicting the layered metal skin found on the US Modules and the Russian's use of exterior insulation and variety of surface-attached equipment.

Some of the smallest detail seems to be a little soft, probably due to wear on the molds. I don't see this as a problem though because this kit is an astonishing leap in quality and craftsmanship from what is currently available.

Decals and Instructions

The kit comes with a single page, double sided, hand drawn instruction sheet. In typical RealSpace Models form, the drawings are nicely done and the method of assembly is fairly well described. But as always the modeler should study the drawings and reference material, then test fit all parts prior to gluing everything together.

Each assembly is accompanied by a list of colors and their general location. This is a good guide for the base colors but reference photos will be required for detail painting of the trunion pins, various cables and exterior attached equipment.

Conclusion

I am very pleased with the value of this kit. There is a lot of work that has been put into research and production of the pieces, and the asking price is very reasonable. In my opinion, there is every reason for those wanting to construct an accurate representation of the ISS to purchase this kit.


Many thanks to Vince's wallet for providing the review sample. Manufacturers and retailers, interested in getting your wares reviewed and publicized on a site averaging 3500+ readers a day? Contact us!

Please note that the opinions expressed in this article are those of the reviewer.
